Transfer Additive Injection Skid

Date: December 31, 2012
Location: Detroit, MI

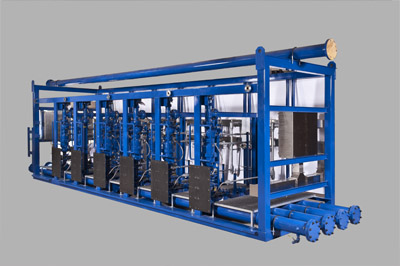

This Lane Additive Pre-Fabricated Skid is a metering, blending and top truck load out skid. It is equipped with (4) active 8” header lines (84, 91 single filter, Eth, 91 double filter) and (4) spare 8” headers. Bullard Company built this skid according to a design furnished by our client – a major petroleum company.

Included:

  • (8) 8” A-53 GR Pipe headers
  • Thermal relief line
  • Skid frame: 30’6”L x 8’0” W x 10’0” H consisting of 6” x 6”x ¼” Tube Steel Frame
  • (8) 1” drain downs
  • (9) 4” control valves
  • (9) 4” butterfly valves w/ short lever
  • (6) Additive injector systems
  • 1” additive piping headers
  • Lane 6 PLC I/O Enclosure Support Steel
  • (9) PD Meters
  • (7) Grated Steel Platforms
  • All steel plates, angles and channels A36 steel
  • All steel tubing ASTM A500 Grade B
  • All steel beams A992

Total Weight = 25,000 lbs.

Products Used

« Back to Project Portfolio

Photos

Process Skid Process Skid

Bullard Company's process skids are fabricated by certified welders in accordance with AWS and ASME specifications.
