Truck Loading Rack

We design, engineer, and fabricate loading rack systems to fit your tank truck loading, unloading, inspection, and sampling applications. Our rack system design provides your operators with a convenient, safe, and durable solution.

Designing and fabricating rack systems is just one of our many strengths.  Fabricating durable, long lasting loading rack systems is only a portion of what we do.  Bullard Company takes a proactive approach to making sure that the access structure meets all applicable local, state, and federal codes as outlined by OSHA.  Our fall prevention equipment is continually examined at to make sure the handrails, toe plates and grab rails not only meet these guidelines but consider your operator's safety.

Safety being the main concern, Operator Mobility is the second most important consideration.  Work area and operator mobility should be unobstructed. Canopy heights provide ample clearance for loading arm positioning.

Four Basic Designs:

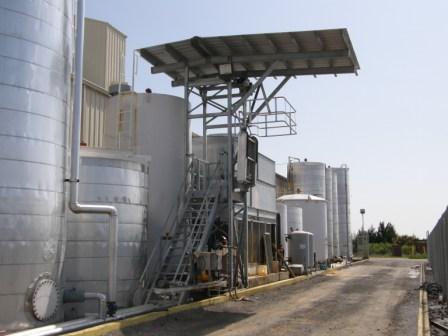

• Loading Racks with Half Canopy: Protects the operation on one side of the platform

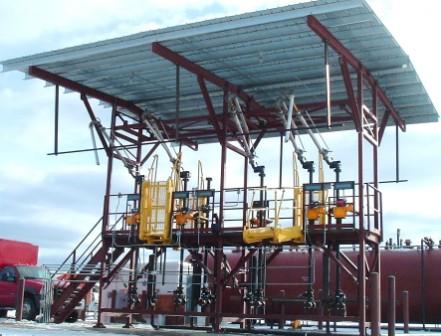

• Loading Racks with Full Canopy:Protects the operations on both sides of the platform

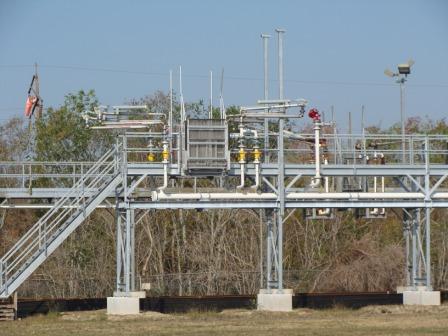

• Loading Racks without Canopy: Single center column design for limited space.
• Loading Racks without Canopy: Multi-column design for greater load bearing.

All of our rack systems can be equipped with safety bridges, safety stairs, or safety enclosures for access to the entire truck.

In addition to the various  designs, our rack systems can include optional or non-standard equipment additions or features.  We have taken the design of rack systems to a new level - modular rack systems. Given the application, our racks can be designed in modular sections that can be pre-piped, ready for installation.

Modular Rack Systems allow minimal site disruption and limited onsite personnel which translates into limted exposure to accidents or lost time.  Modular Rack Systems allow you to bring your operations online quicker than assembling the rack system in the field.

• Fabrication: All rack systems are fabricated and pre-assembled by certified welders.  Each structural weld is certified to the AWS codes. Pipe welds are performed by welders certified under ASME, section 9.
• Durability: All rack systems are designed to the environmental conditions for each job site to allow for the proper material strengths.
• Finishes and Coatings: Each rack system is available in a variety of finishes.  Hot dip galvanized is the most durable.  Red oxide primer and an epoxy two-part paint finish is also available.
• Cost Effective: Our rack systems are fabricated in pre-piped modular sections to facilitate reduced set-up times.  Smaller platforms can be shipped to the job site completely assembled.

Whatever your project needs, we provide the solution!

Call us at (419) 841-8775 or visit our Contact Page to order.

Product Images:
