Products: Gangways

Adjustable Reach Safety Bridges

Bullard Company brings to various industries bridge designs that provide the versatility for many applications that require the top accessing of your mode of transportation for bulk loading or unloading of products. The safety bridges are designed with a working range of 15 degrees above or below the platform surface.  With Bullard Company's design expertise we can provide safe access solutions for your operations.    Combing many years of experience in providing access equipment to the market and the need for repairable units, our engineering group has incorporated the following design features into each model.

  • Modular design for ease of parts replacement
  • Aluminum bridges have hot dip galvanized base mount with stainless steel tread and axle assembly.
  • Integrated mounting option for either top or flush mounting.
  • Permanently lubed bearings on main axle.
  • Variety of finishes are available: Standards safety yellow powder coating on all steel units, hot dip galvanizing, uncoated aluminum, or anodized aluminum.
  • Totally enclosed dual spring balancing for ease of positioning.
  • Spring loaded stainless steel latch for vertical storage.
  • Welded stops to prevent the bridge from lowering below 15 degrees.
  • Optional adjustable chain stops & hydraulic assist.
  • Folding tubular handrails that meet OSHA standards.
  • Self-leveling hoops can be attached for secondary fall prevention
STEEL ALUMINUM


The Bullard B300RT series bridges are designed with a manually adjustable extension that can be extended or retracted to eliminate any gap that may exist between the railcar platform and the stationary platform.

Primary used for railcar loading and unloading applications that have platforms that vary in width.  The bridges can be equipped with the optional self leveling safety hoops for secondary fall prevention, adjustable chain stop kits, slide tracks, or pivot mounts.

The Bullard B500RT series bridges are designed like the B500 series for applications that require a light weight but durable bridge.  The B500RT series is designed with a manually adjustable extension that can be extended to eliminate any gap that my exist between the railcar platform and the stationary platform.

Primary used for railcar loading and unloading applications as well as many others. The bridges can be equipped with the optional self-leveling safety hoops for secondary fall prevention, adjustable chain stop kits, slide tracks, or pivot mounts.
Both B300& B300RT series offered by Bullard Company are available in standard widths and lengths as well as customized to your application. Both B500& B500RT series offered by the Bullard Company are available in standard widths and lengths as well as customized to your application.

Call us at (419) 841-8775 or visit our Contact Page to order.

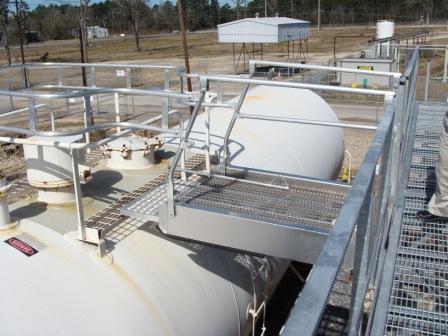

Product Images:
